The Seaboard 2 can be used wirelessly on a Mac by using a MIDI over Bluetooth connection. This article will walk you through how to connect the Seaboard 2 wirelessly using the Audio MIDI Setup on macOS.


What about Windows?

Although Windows recently introduced some support for MIDI-over-Bluetooth, it is not yet adequate for use with the Seaboard 2. We hope to see full MIDI-over-Bluetooth functionality for Windows in the future, and in the meantime we recommend connecting via USB.



How to connect the Seaboard 2 via Bluetooth (macOS)



Step 1: Turn on the Seaboard 2

  1. Unplug the Seaboard's USB cable and switch it on using the power/mode button.
  2. The power/mode button will flash blue – it is ready for Bluetooth pairing.



Step 2: Open Audio MIDI Setup

  1. On your Mac, click the Spotlight icon (if shown) in the menu bar, press Command-Space bar, or press the Spotlight key (if available) in the row of function keys on the keyboard.

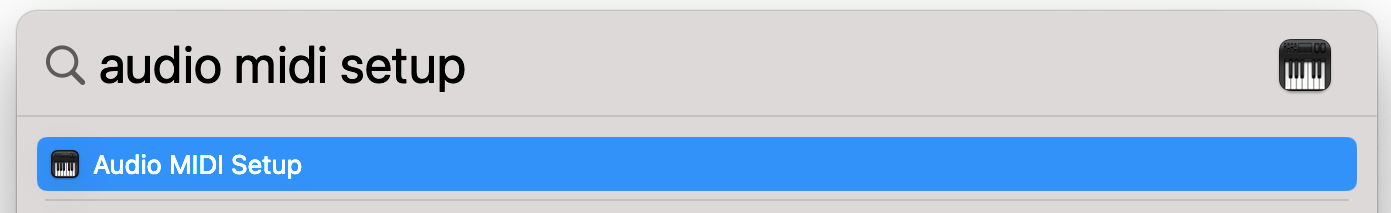

  2. Type 'Audio MIDI Setup' and hit Enter.

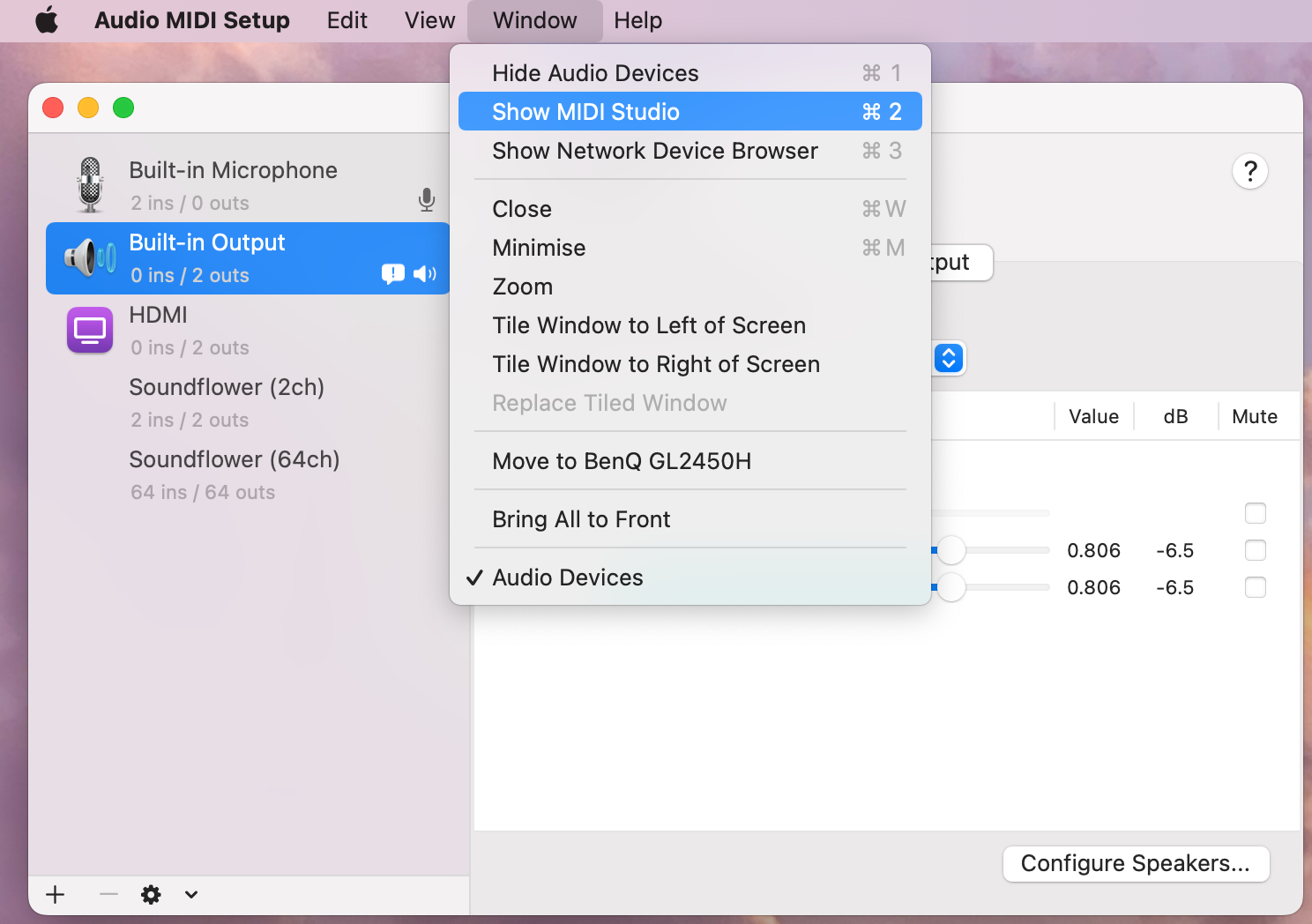

  3. From the menubar, click Window > Show MIDI Studio or use the keyboard shortcut Command-2


Step 3: Connect the Seaboard 2

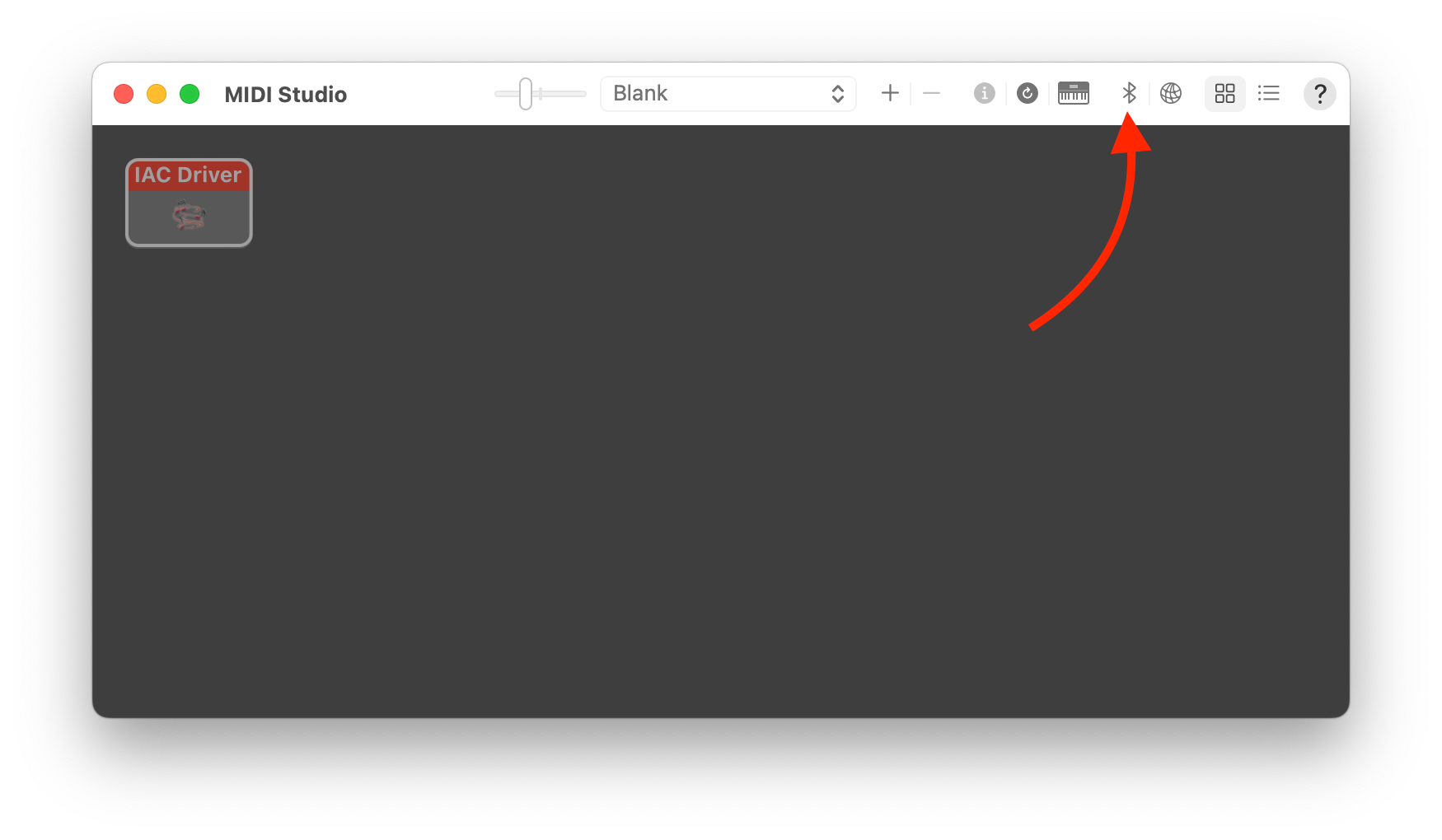

        1. Click the Bluetooth icon to open the Bluetooth Configuration window.

   2. A smaller window will open showing that your Mac is scanning for MIDI Bluetooth devices. Once your Seaboard 2 is detected, click Connect.




3. Once connected, the button will change to 'Disconnect' and the Seaboard 2 will show as a MIDI device in the MIDI Studio window.



Step 4: Your Seaboard 2 is now connected via Bluetooth.


  • Open Equator2 or your software of choice to start playing your new Seaboard 2!


To further configure your Seaboard 2's touch controls or for setting up in third-party software, check out Using ROLI Dashboard.
